    Compatible Quick Lock Connector 4 Pin Straight Plug Connector FGG 2B.704.CLAD62Z

    Ask Lasest Price
    Brand Name : Sreada

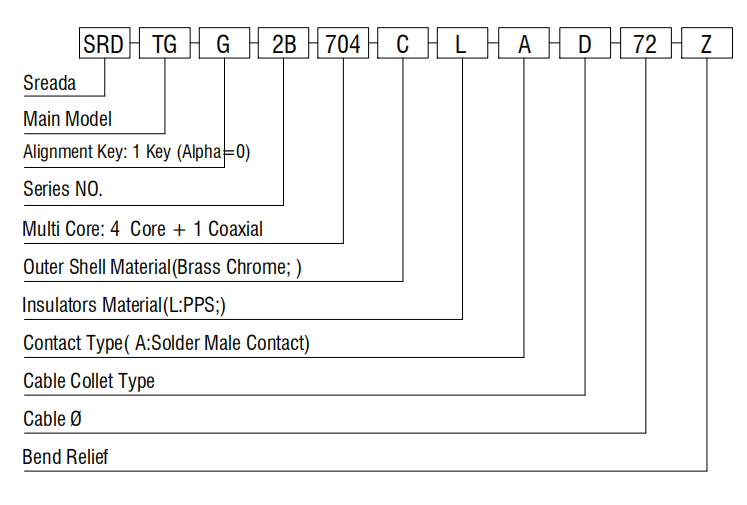

    Model Number : TGG.2B.704.CLAD62Z
    Price : $3.00 - $30.00/Sets
    Supply Ability : 5000 Set/Sets per Week
    • Product Details
    • Company Profile

    Compatible Quick Lock Connector 4 Pin Straight Plug Connector FGG 2B.704.CLAD62Z

    Low Voltage 5pin SRD.TGG FGG.2b.704 Watertight Connector

    B Series connector with thefollowing main features:

    · Security of the push-pull self-latching system;

    · Multicore types with 2 to 32 pins;
    · Solder or PCB contacts(straight or elbow);
    · High-density installation for space-saving;
    · Multiple key options to avoid cross mating or similar connectors;
    · 360-degree screening for full EMC protection

    · Mechanical properties and environmental factors:
    · Endurance>5000 cycles
    · Humidity.up to 95% at 60℃
    · Temperature range:-45℃~+125℃
    · Resistance to vibration:10-20000Hz,15g
    · Shock resistance:100g.6ms
    · Salt spray corrosion test >48hrs
    · Protection index:IP50

    Low voltage push-pull connectors for data, signal, electrical and power use!

    L-emos connectors are used in instrumentation, medical devices, and anywhere a high density, high reliability, quick mating connector is needed.


    We provide

    1. 100% quality assurance, all broke parts can be guaranteed within 30 days after received.

    2. According to customer requirement, provide 10 years warranty.

    3. Repairs parts are available within 10years; EOL products will be always informed to you.

    4. Supply free LOGO to the surface of over-molded connectors upon customers' requirement.

    Compatible Quick Lock Connector 4 Pin Straight Plug Connector FGG 2B.704.CLAD62Z
    Compatible Quick Lock Connector 4 Pin Straight Plug Connector FGG 2B.704.CLAD62ZCompatible Quick Lock Connector 4 Pin Straight Plug Connector FGG 2B.704.CLAD62ZCompatible Quick Lock Connector 4 Pin Straight Plug Connector FGG 2B.704.CLAD62ZCompatible Quick Lock Connector 4 Pin Straight Plug Connector FGG 2B.704.CLAD62Z


    Questions? Comments? Special Requests? Contact me! I am always happy to help!

    SRD.TGG. Straight plug,key(G)or keys (A...M and R),cable collet

    ReferenceDimensions(mm)
    ModelSeriesALMS1S2
    FGG001)6.428.520.55.55
    FGG0B9.5362687
    FGG1B124332109
    FGG2B1550381312
    FGG3B1858431514
    FGG4B2575572120
    FGG5B3510378.03130

    Note:1)the surface design of the 00 series is different.

    Compatible Quick Lock Connector 4 Pin Straight Plug Connector FGG 2B.704.CLAD62Z

    Insulator specs for B series

    Compatible Quick Lock Connector 4 Pin Straight Plug Connector FGG 2B.704.CLAD62Z

    Compatible Quick Lock Connector 4 Pin Straight Plug Connector FGG 2B.704.CLAD62Z

    Jacket:

    SeriesProduct numberSize (mm)
    jacketCable diameter
    ALmaxMin
    00GMA.O0.028.DG2.8223.12.8

    0B

    0S

    GMA.0B.030.DG3.0243.43.0
    GMA.0B.040.DG4.0244.44.0
    GMA.0B.045.DG4.5245.24.5
    GMA.0B.052.DG5.2245.64.5

    1B

    1S

    GMA.1B.040.DG4.0304.44.4
    GMA.1B.045.DG4.5304.94.5
    GMA.18.054.DG5.4306.05.4
    GMA.1B.065.DG6.5307.06.5
    2BGMA.2B.050.DG5.0365.55.0
    GMA.2B.060.DG6.0366.56.0
    GMA.2B.070.DG7.0367.77.0
    GMA.2B.080.DG7.8368.87.8
    GMA.2B.085.DG8.5369.28.2
