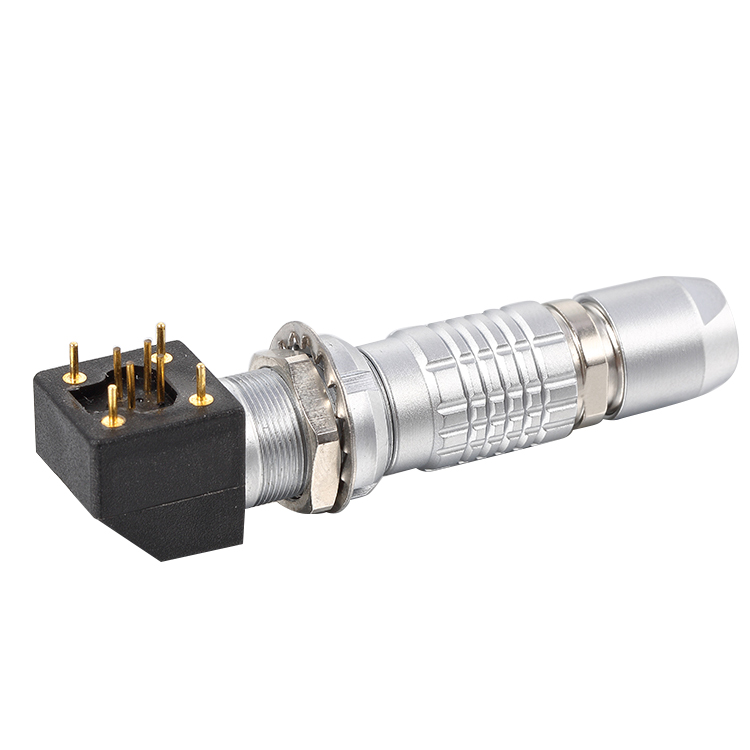

| B Series connector with thefollowing main features: |
·Security of the push-pull self-latching system; ·Multicore types with 2 to 32 pins;
·Solder or PCB contacts(straight or elbow);
·High-density installation for space-saving;
·Multiple key options to avoid cross mating or similar connectors;
·360-degree screening for full EMC protection | ·Mechanical properties and environmental factors:
·Endurance>5000 cycles
·Humidity.up to 95% at 60℃
·Temperature range:-45℃~+125℃
·Resistance to vibration:10-20000Hz,15g
·Shock resistance:100g.6ms
·Salt spray corrosion test >48hrs
·Protection index:IP50 |
Insulator specs for B series
Jacket:
| Series | Product number | Size (mm) |
| jacket | Cable diameter |
| A | L | max | Min |
| 00 | GMA.O0.028.DG | 2.8 | 22 | 3.1 | 2.8 |
0B 0S | GMA.0B.030.DG | 3.0 | 24 | 3.4 | 3.0 |
| GMA.0B.040.DG | 4.0 | 24 | 4.4 | 4.0 |
| GMA.0B.045.DG | 4.5 | 24 | 5.2 | 4.5 |
| GMA.0B.052.DG | 5.2 | 24 | 5.6 | 4.5 |
1B 1S | GMA.1B.040.DG | 4.0 | 30 | 4.4 | 4.4 |
| GMA.1B.045.DG | 4.5 | 30 | 4.9 | 4.5 |
| GMA.18.054.DG | 5.4 | 30 | 6.0 | 5.4 |
| GMA.1B.065.DG | 6.5 | 30 | 7.0 | 6.5 |
| 2B | GMA.2B.050.DG | 5.0 | 36 | 5.5 | 5.0 |
| GMA.2B.060.DG | 6.0 | 36 | 6.5 | 6.0 |
| GMA.2B.070.DG | 7.0 | 36 | 7.7 | 7.0 |
| GMA.2B.080.DG | 7.8 | 36 | 8.8 | 7.8 |
| GMA.2B.085.DG | 8.5 | 36 | 9.2 | 8.2 |
FAQ
Q1:Are you a factory or a trading company?
We are a factory with 2000 square meter, Including more than 50
units CNC etc, machine, connectors and cable assembly line and our
own R&D teams.
Q2: What certificates do you have?
We have international quality certificates and standard
ISO9001,RoHS,CE,ULand so on.
Q3: What are your main markets?
We mainly export to West and North Europe, North American,
Australia, India and so on. Having enjoyed good reputation.
Q4: Do you provide OEM or ODM services?
Yes, we offer OEM and ODM service. Our designers and technicians
make your ideas come true that belong to your personalized
products.
Q5: How do we know your products quality? Can I get sample free?
You can make the sample to check the quality first. If you want to
get sample by free. Contact us now.
Visit description:
The plan: You can fly to Shenzhen Baoan international Airport, we
will arrange car to pick you up to our factory.
