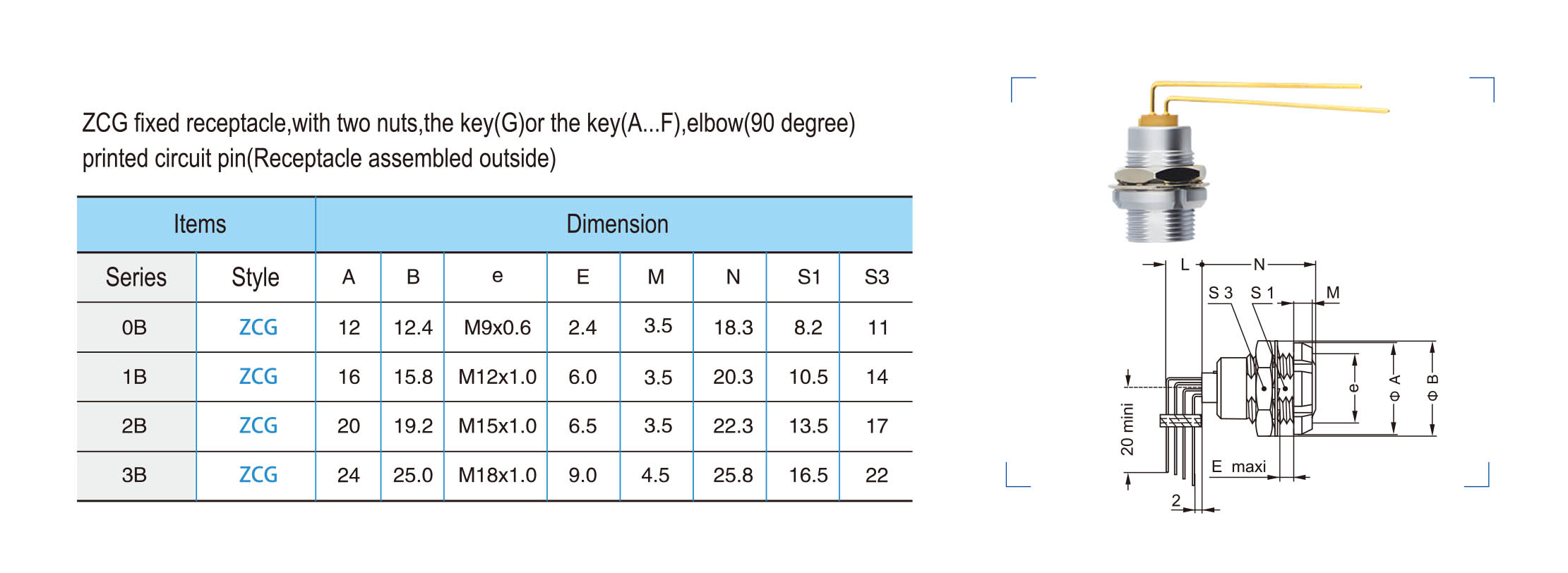

ZCG fixed socket, 90° Angle panel mounting connector 0B 4 pin
Specifications of ZCG 0B 4 pin fixed socket:
| Configuration | Brass (gold plated) |
| Insulator | PPS |
| Endurance (Shell) | 5000 mating cycles |
| Temp (min) | -40 deg |
| Temp (max) | 200 deg C |
| Humidity (max) | <=95% [at 60 deg C / 140 F] |
| Vibration | 15 g [10 Hz - 2000 Hz] |
| Shock Resistance | 100 g [ 6 ms] |
| Salt Spray Corrosion | >144 hr |
| IP Rating | 68 |
Main features of ZCG 0B 4 pin fixed socket:
1. Security of the push pull self locking system for easy and quick
operation
2. Solder or PCB contacts( Straight or elbow)
3. High sealing for underwater application, up to IP68
4. Half-shell key to avoid cross mating
5. Vacuum-tight socket suitable for vacuum equipment
Our advantages:
1.Produce Range
SHENZHEN SREADA TECHNOLOGY CO., LTD.,major in the connector, who
have wide range of products, such as Circular Push Pull Connectors,
Push Pull Electrical Connectors, Push Pull Cable Connectors, Panel
Mount Socket, Medical Cable Connectors, Custom Electrical
Connectors and so on.
2.Scope of application
The product is widely used in diagnostic devices, surgical
instrumentation, test&measurement, surveillance equipment,
computers, target acquisition, HD and SD cameras, remote camera
control, and so on.
3.Service
With the "User first, customer first" Company motto, quality
assurance, economic price, fast Delivery time are our only faith.
we will try our best to make every customer to enjoy the the most
flexible, efficient services. We sincerely hope that we can seek
the common development and cooperation with the customer together
to achieve a win-win situation.
4.Logistics
We can send the goods to the customer's country directly by the
international logistics, no matter send by air or by sea.
we will try our best to let the customer to get the parcel more
conveniently.
About us:
VISION--To become the world's leading supplier of industrial
connectivity systems.
MISSION--High reliability connectivity system solutions for the
industrial field.
VALUES--Quality first, quick response, pursuit of excellence, full
participation, achievement customer.
