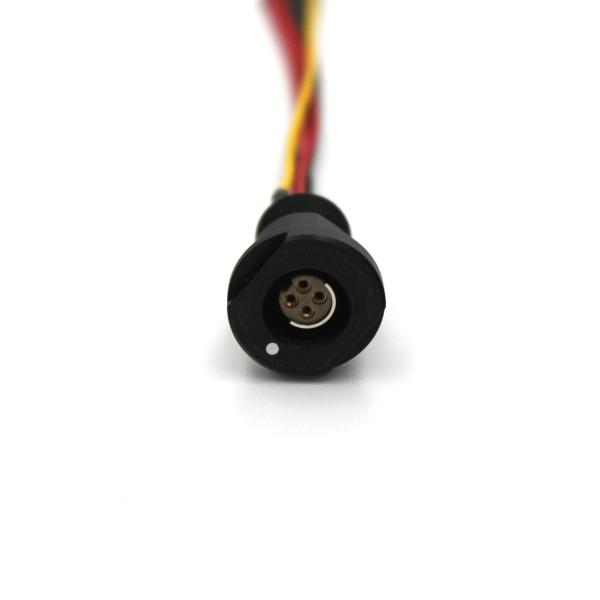

2 - 30 Pin F Series Female Waterproof Cable Connector Custom Design
Descriptions of F series 4 pin waterproof connectors:
1. security of the Push-Pull self-latching system
2. IP68, waterproof
3. easy mating, can be blind-mated (guiding mechanism ensures
precise alignment)
4. 360°screening for full EMC shielding
5. robust and shock resistant (designs ideal for equipment used in
the field)
6. high packing density for space savings
7. solder contacts
Specifications of F series 4 pin waterproof connectors:
| Pulling and inserting times | > 3000 cycles |
| Humidity | Maximum humidity up to 95% at a temperature of 40℃ |
| Temperature | -45℃~+125℃ |
| Vibration | frequency 10-20000HZ, acceleration 147m/s², ≤1um instantaneous
break |
| Impact | acceleration 490m/s², ≤1um instantaneous break |
| Protection index (mated) | IP68 |
| Connector type | Male Pins |
| Termination | Solder |
| Fastening type | Push-pull |
| Shell material | Brass |
| Shell finish | Chrome |
| Shell color | Black |
| Contact material | Brass |
| Contact finish-mating | Gold |
| Contact color | Gold |
| Insert material | polyphenylene sulfite ( PPS) |
Applications of F series 4 pin waterproof connectors:
1. medical: diagnostic devices, therapy applications, medical
imaging, surgical instrumentation, cardiac assist devices
2. instrumentation: test&measurement, sensors, data
acquisition, automation, scientific research, vacuum
3. transport: maritime, automotive, avionics, railways
4. extreme: motorsports, sailboat racing, diving, submarine
industry, weatherproof applications
5. defense&security: communication systems, surveillance
equipment, computers, target acquisition
FAQ:
Q1:Are you a factory or a trading company?
We are a factory with our own machines, connectors and cable
assembly line and R&D teams.
Q2: What certificates do you have?
We have international quality certificates and standard
ISO9001,RoHS,CE,ULand so on.
Q3: What are your advantages?
We are professional manufacture with more than 12 years on
Connector . And the warranty of our products is 1 years.
Q4: What are your main markets?
We mainly export to West and North Europe, North American,
Australia, India and so on, having enjoyed good reputation.
Q5: Do you provide OEM or ODM services?
Yes, we offer OEM and ODM service. Our designers and technicians
make your ideas come true that belong to your personalized
products.
Q6: Can you offer samples to test before normal order?
We are willing to provide samples. The sample can be delivered
within 3 working days. For expensive items, please contact us
first.
Q7: Some connectors are available with different cables. Which
cables shall I choose?
Always choose the cable with the bigger diameter, because the
bigger diameter results in less attenuation.
