ZPG 0B Push Pull Miniature Circular Connector 4 Pin IP50 With Elbow Socket

Ask Lasest Price
Brand Name :	Sreada
Model Number :	SRD.ZPG.0B.304.HLN
Price :	$3.00 - $30.00/Sets
Supply Ability :	5000 Set/Sets per Week

Add to Cart

Product Details
Company Profile

ZPG 0B Push Pull Miniature Circular Connector 4 Pin IP50 With Elbow Socket

Main features:

1. Security of the push-pull self-latching system

2. Solder or print contacts(straight or elbow)

3. Keying system for connector alignment

4. 360°screening for full EMC shielding

ZPG 0B Push Pull Miniature Circular Connector 4 Pin IP50 With Elbow Socket

Specifications of ZPG.0B.304 socket:

Insert	4 low voltage
Configuration	Brass (gold plated)
Insulator	PPS
Endurance (Shell)	5000 mating cycles
Temp (min)	-45 deg C
Temp (max)	+125 deg C
Humidity (max)	<=95% [at 60 deg C / 140 F]
Vibration	15 g [10 Hz - 2000 Hz]
Shock Resistance	100 g [ 6 ms]
Salt Spray Corrosion	>144 hr
IP Rating	50
Shielding (min)	75 dB (10 MHz)
P op (max)	60 bar (870 psi)

ZPG 0B Push Pull Miniature Circular Connector 4 Pin IP50 With Elbow Socket

Application:

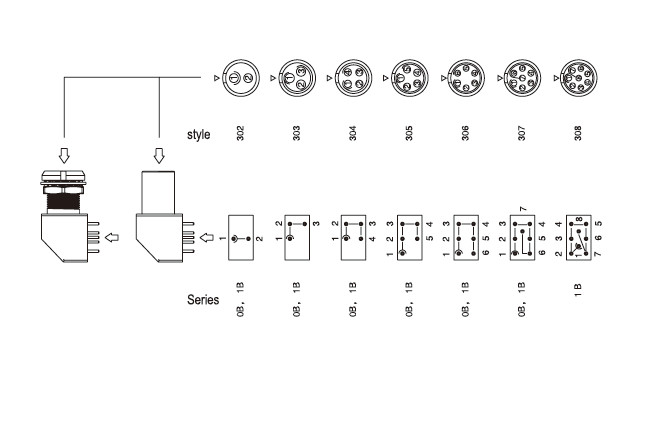

ZXG.0B.304 socket is a elbow ( 90°) socket for printed circuit with two nuts. You can pick the right size you want according to your panel cut-outs and other parameters. ZXG.0B.304 socket widely used in many area like medical, audio - video and so on.
