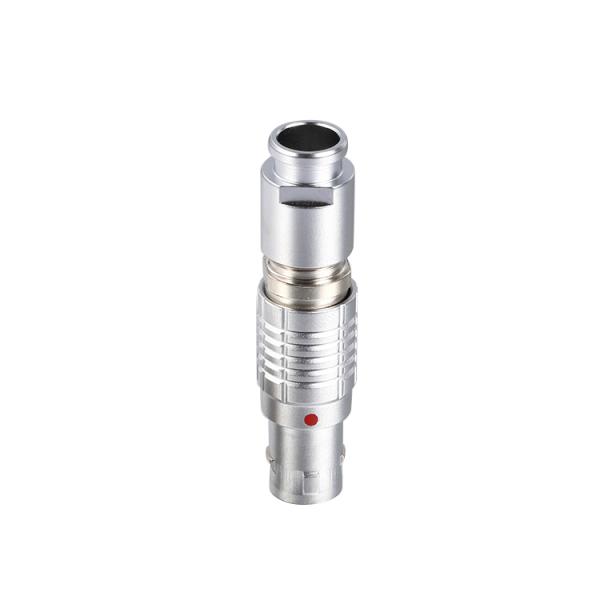

ZGG IP50 Push Pull Electrical Connectors 5 Pin Male Plug And Socket Connectors

TGG.1B.305. Mate ZGG Male Plug Multipin 2 To19 Pin Self Locking Push Pull Male 5 Pin Plug Socket Connector

B Series connector with thefollowing main features:

· Security of the push-pull self-latching system;

· Multicore types with 2 to 32 pins;
· Solder or PCB contacts(straight or elbow);
· High-density installation for space-saving;
· Multiple key options to avoid cross mating or similar connectors;
· 360-degree screening for full EMC protection

· Mechanical properties and environmental factors:
· Endurance>5000 cycles
· Humidity.up to 95% at 60℃
· Temperature range:-45℃~+125℃
· Resistance to vibration:10-20000Hz,15g
· Shock resistance:100g.6ms
· Salt spray corrosion test >48hrs
· Protection index:IP50

ZGG IP50 Push Pull Electrical Connectors 5 Pin Male Plug And Socket Connectors

SRD.TGG. Straight plug,key(G)or keys (A...M and R),cable collet

Reference		Dimensions(mm)
Model	Series	A	L	M	S1	S2
FGG	001)	6.4	28.5	20.5	5.5	5
FGG	0B	9.5	36	26	8	7
FGG	1B	12	43	32	10	9
FGG	2B	15	50	38	13	12
FGG	3B	18	58	43	15	14
FGG	4B	25	75	57	21	20
FGG	5B	35	103	78.0	31	30

Note:1)the surface design of the 00 series is different.

ZGG IP50 Push Pull Electrical Connectors 5 Pin Male Plug And Socket Connectors

Insulator specs for B series

ZGG IP50 Push Pull Electrical Connectors 5 Pin Male Plug And Socket Connectors

Jacket:

Series	Product number	Size (mm)
		jacket		Cable diameter
		A	L	max	Min
00	GMA.O0.028.DG	2.8	22	3.1	2.8
0B 0S	GMA.0B.030.DG	3.0	24	3.4	3.0
	GMA.0B.040.DG	4.0	24	4.4	4.0
	GMA.0B.045.DG	4.5	24	5.2	4.5
	GMA.0B.052.DG	5.2	24	5.6	4.5
1B 1S	GMA.1B.040.DG	4.0	30	4.4	4.4
	GMA.1B.045.DG	4.5	30	4.9	4.5
	GMA.18.054.DG	5.4	30	6.0	5.4
	GMA.1B.065.DG	6.5	30	7.0	6.5
2B	GMA.2B.050.DG	5.0	36	5.5	5.0
	GMA.2B.060.DG	6.0	36	6.5	6.0
	GMA.2B.070.DG	7.0	36	7.7	7.0
	GMA.2B.080.DG	7.8	36	8.8	7.8
	GMA.2B.085.DG	8.5	36	9.2	8.2
