| B Series connector with thefollowing main features: |
·Security of the push-pull self-latching system; ·Multicore types with 2 to 32 pins;
·Solder or PCB contacts(straight or elbow);
·High-density installation for space-saving;
·360-degree screening for full EMC protection | ·Mechanical properties and environmental factors:
·Resistance to vibration:10-20000Hz,15g
·Shock resistance:100g.6ms
·Salt spray corrosion test >48hrs
·Protection index:IP50 |

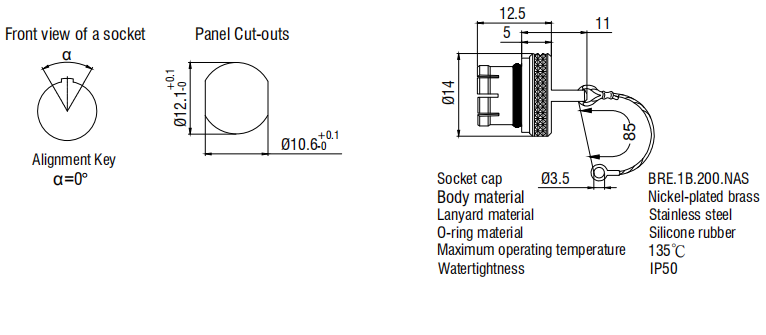

SRD.ZEG. Receptacle assembled outside,fixed inside of case with
nut,with key (G)or key(A..M,R) to avoid moving and mismatching.
| Items | Dimensions(mm) |
| Series | Style | A | B | e | E | L | M | N1) | P | S3 |
| 0B | ZEG | 12 | 12.5 | M9x0.6 | 2.4 | 20.7 | 2.5 | 19.1 | 6.3 | 8.2 |
| 1B | ZEG | 16 | 16.0 | M12×1.0 | 6.5 | 23.0 | 3.5 | 21.1 | 11.0 | 10.5 |
| 2B | ZEG | 20 | 20.0 | M15×1.0 | 3.0 | 26.7 | 3.5 | 24.6 | 9.0 | 13.5 |
| 3B | ZEG | 24 | 25.0 | M18×1.0 | 5.0 | 30.7 | 4.5 | 28.1 | 12.0 | 16.5 |
Note:1)the surface design of the 00 series is different.
Insulator specs for B series
Jacket:
| Series | Product number | Size (mm) |
| jacket | Cable diameter |
| A | L | max | Min |
| 00 | GMA.O0.028.DG | 2.8 | 22 | 3.1 | 2.8 |
0B 0S | GMA.0B.030.DG | 3.0 | 24 | 3.4 | 3.0 |
| GMA.0B.040.DG | 4.0 | 24 | 4.4 | 4.0 |
| GMA.0B.045.DG | 4.5 | 24 | 5.2 | 4.5 |
| GMA.0B.052.DG | 5.2 | 24 | 5.6 | 4.5 |
1B 1S | GMA.1B.040.DG | 4.0 | 30 | 4.4 | 4.4 |
| GMA.1B.045.DG | 4.5 | 30 | 4.9 | 4.5 |
| GMA.18.054.DG | 5.4 | 30 | 6.0 | 5.4 |
| GMA.1B.065.DG | 6.5 | 30 | 7.0 | 6.5 |
| 2B | GMA.2B.050.DG | 5.0 | 36 | 5.5 | 5.0 |
| GMA.2B.060.DG | 6.0 | 36 | 6.5 | 6.0 |
| GMA.2B.070.DG | 7.0 | 36 | 7.7 | 7.0 |
| GMA.2B.080.DG | 7.8 | 36 | 8.8 | 7.8 |
| GMA.2B.085.DG | 8.5 | 36 | 9.2 | 8.2 |
Certificate
CUSTOM SERVICE:
Technical support: Any questions or problems in your connector’s or
cable’s working, our technical department will supply professional
support to help you solve them.
Cable assembly solution supply: We can make cable assembly service
solution to meets you need.
Customized connector service: if our present connectors can’t suit
exactly what you need, we can open new mould for you.
Cable assembly service: we can supply cable assembly service
according to your requirements.
