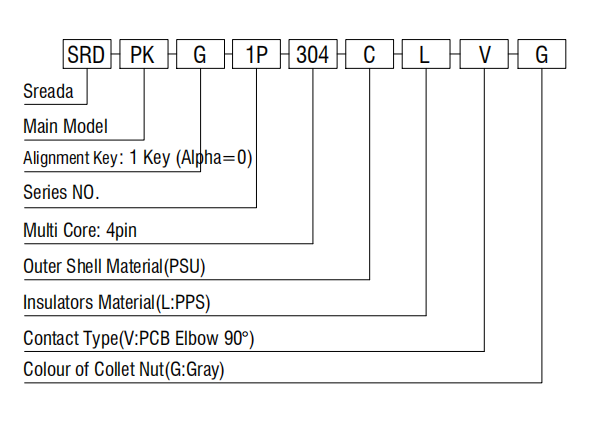

Alignment Key and Polarized Keying System

Keying
Plug	Male	Female
Receptacle	Female	Male
Number of Contacts	2 to 14	8, 10 or 14

Plug of P series connector

- Get the cable through collet nut collet,then solder it to the corresponding position of insulator subassembly.
- Put the collet onto the solkiered insulator subassembly,make sure the heave of collet mate with the slot of insulator subassembly.
- Slide the insulator subassembly into outer shell,make sure the heave of collet mate with the slot of outer shell.
- Put the collet nut into outer shell,and screw the colet nut tightly.
