Alignment Key and Polarized Keying System

Keying
Plug	Male	Female
Receptacle	Female	Male
Number of Contacts	2 to 14	8, 10 or 14

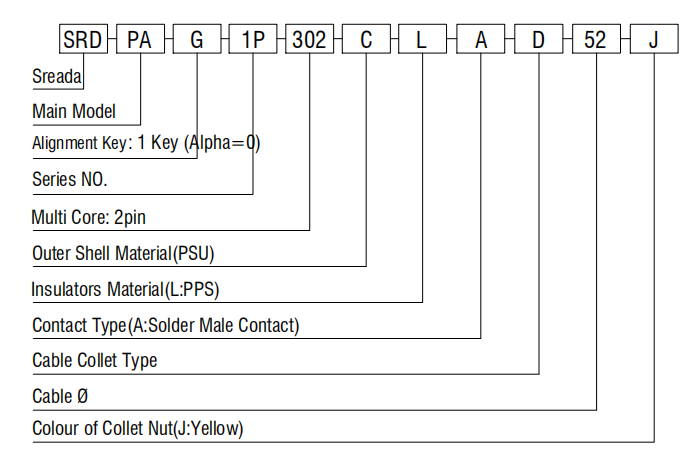

Plug of P series connector

-Get the cable through collet nut collet,then solder it to the corresponding position of insulator subassembly.
-Put the collet onto the solkiered insulator subassembly,make sure the heave of collet mate with the slot of insulator subassembly.
-Slide the insulator subassembly into outer shell,make sure the heave of collet mate with the slot of outer shell.
-Put the collet nut into outer shell,and screw the colet nut tightly.

Custom design:

While Sreada offers the most extensive product line in the connector industry, Sreada also understands that some application needs are different.

If Sreada does not have exactly what you need, Sreada can design and build a connector that meets your exact requirements.Sreada offers custom-engineered solutions through innovative design, using state-of-the-art development tools.

These powerful tools allow Sreada to demonstrate product feasibility, including prototyping, in a matter of days or weeks rather than months. Interested in getting a quote on a custom design connection solution?
